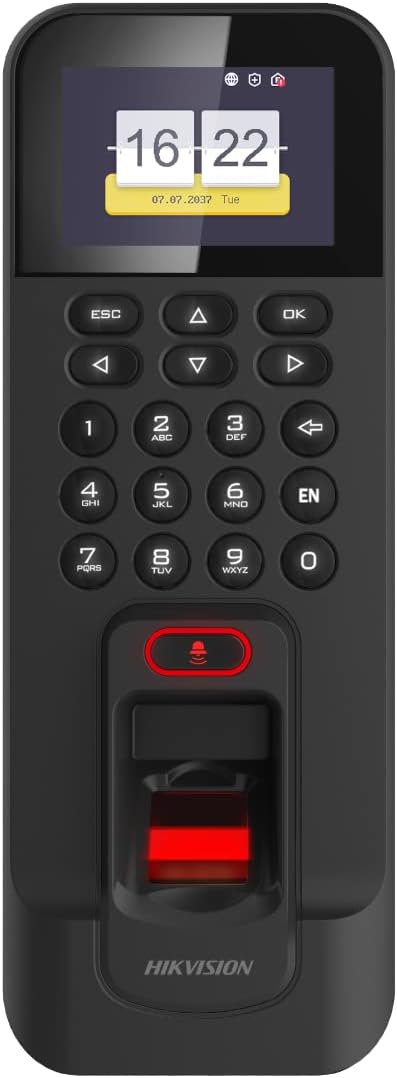

Hikvision DS-K1T904AMF Fingerprint Access Control Terminal

Specifications & Features

• Display & Design: Features a 2.4‑inch LCD display, compact and suitable for various installations.
• Storage Capacity: Stores up to 3,000 fingerprints, 3,000 RFID cards, and 100,000 event records.
• Authentication & Communications: Supports multiple authentication modes: fingerprint, MIFARE card, and PIN/password. Connectivity includes TCP/IP, Wi‑Fi, and RS‑485 (for secure module connection).
• Functionality: Operates as a standalone access control terminal, also supports time and attendance functions.

Environmental Specs

• Operating temperature: –10 °C to +55 °C, humidity: 10%–90% non‑condensing.

• Dimensions: ~195 × 85 × 37 mm, weight: ~300 g.

• Powered by 12 V DC

• A 7‑inch touchscreen display

• Capacity: 10,000 fingerprints, 10,000 cards, and 300,000 event logs

• Connectivity: includes Wiegand, anti‑spoofing (live finger detection), RS‑485, Wi‑Fi, TCP/IP

• Recognition speed: under 1 second

• Operating temperature: –10 °C to +50 °C

• Dimensions: 199 × 110 × 44 mm, weight: approx. 1.5 kg
