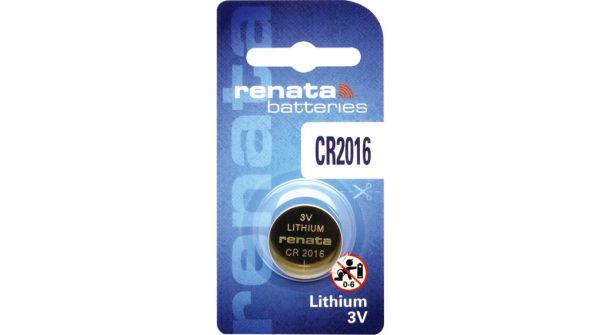

Renata CR2016 Lithium Battery 3V Single Pack

Renata CR2016 Lithium Battery 3V Single Pack

Features

• 3V nominal voltage — ideal for precision devices and continuous low-drain applications

• High-capacity lithium chemistry (Li/MnO₂) with ~90 mAh energy storage

• Leak-resistant design – built to protect devices from damage

Specifications

• Model: CR2016 (IEC/ANSI standard)

• Chemistry: Lithium manganese dioxide (Li/MnO₂)

• Voltage: 3 V

• Capacity: ~90 mAh (rated)

• Dimensions: 20 mm diameter × 1.6 mm height

• Weight: ~1.7 g

• Operating Temp Range: –30 °C to +85 °C (industry standard)

• Self-Discharge: <1–1.5% per year at 23 °C

• Max Continuous Discharge: up to ~3 mA

Common Applications

• Watches and calculators

• Computer motherboard CMOS/BIOS backup

• Key fobs, car remotes, garage-door remotes

• Small medical devices, fitness trackers, toys, and IoT sensors

Why Choose Renata CR2016

• Swiss-made quality – from Renata, a leading coin-cell manufacturer and Swatch Group subsidiary

• Long shelf life – up to 10 years of reliable storage with minimal capacity loss

• Environmentally responsible – mercury-free, stable performance

• High-reliability and low self-discharge – ideal for critical and backup power applications
