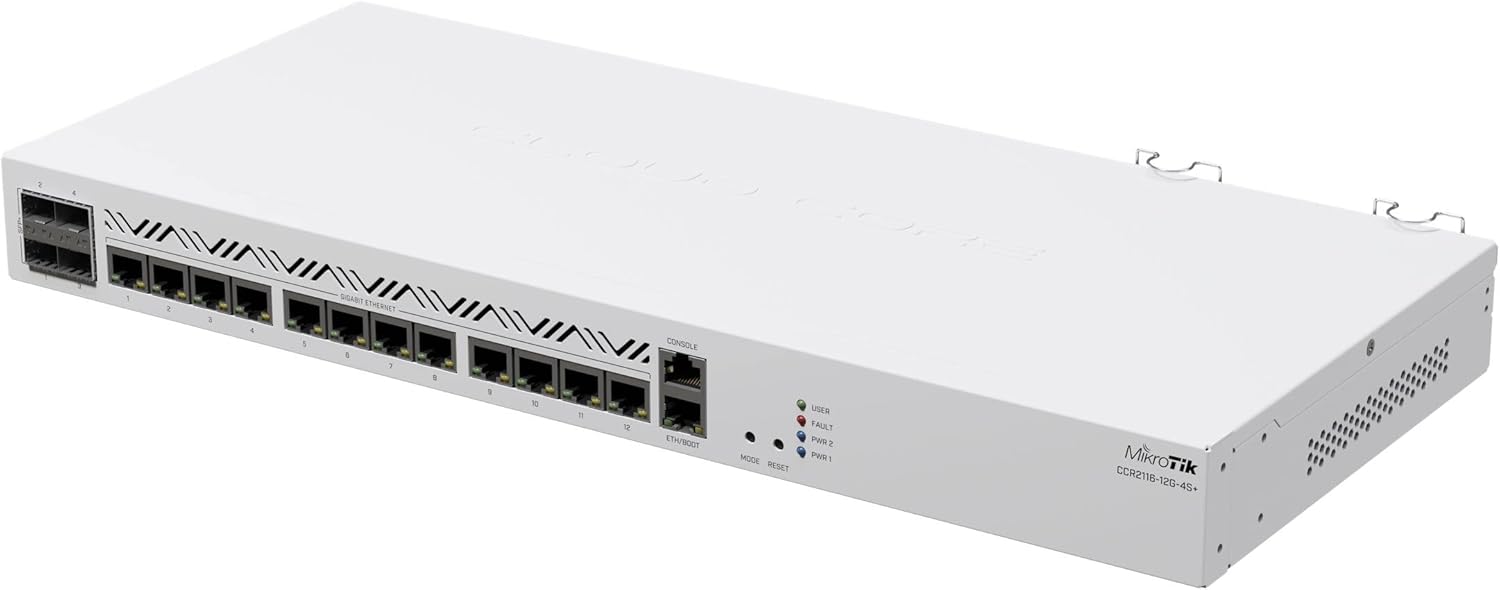

Mikrotik CCR2116-12G-4S+ Cloud Core Router

The CCR2116-12G-4S+ is designed to unlock the full potential of 10G networking paired with modern processing power.  It goes far beyond traditional CPU limitations found in networking setups.

With 16 cores running at 2 GHz, this router redefines performance in the CCR family. Compared to the CCR2004, it delivers at least 15% higher single-core performance—a critical factor for demanding per-connection tasks such as queues. It also supports Layer 3 Hardware Offloading, setting a new benchmark for efficiency and throughput.

High-Speed Connectivity

• 4 x 10G SFP+ ports, each with a dedicated full-duplex connection to the Marvell Aldrin switch chip

• 12 x Gigabit Ethernet ports routed through the Marvell chip

• 1 x dedicated Gigabit Ethernet management port connected directly to the CPU

Each group of 4 ports has its own full-duplex line to the switch chip, ensuring switch-like throughput with no bottlenecks.

Unmatched Processing Power
The new generation of processors provides extraordinary performance gains. Compared to the CCR1036 with its 36-core CPU, the CCR2116 can easily double overall performance despite having fewer cores—thanks to its superior architecture and efficiency.

Ideal for Large-Scale Networks
Built for ISPs and enterprise networks, the CCR2116-12G-4S+ excels in handling:

• Dynamic routing

• Large-scale BGP configurations

• Complex firewall rules

• Advanced QoS (Quality of Service) policies

Reliability Built In
Equipped with a dual-redundant power supply, this router ensures maximum uptime, making it a dependable choice for ISP-level operations.

Specifications

• Product Code: CCR2116-12G-4S+

• Architecture: ARM 64-bit

• CPU: AL73400, 16 cores, 2.0 GHz nominal frequency

• Switch Chip: 98DX3255

• RAM: 16 GB

• Storage: 128 MB NAND

• Operating System: RouterOS v7 (License Level 6)

• MTBF: ~200,000 hours at 25 °C

• Tested Ambient Temperature: -20 °C to +60 °C

• IPsec Hardware Acceleration: Supported

• Dimensions: 443 x 199 x 44 mm

• Number of AC Inputs: 2

• Input Range: 100 – 240 V

• PSU Slots: 2 (dual-redundant power supply)

• Frequency: 47 – 63 Hz

• Max Power Consumption: 83 W

• Max Power Consumption (without attachments): 60 W

• Cooling: 4 fans
