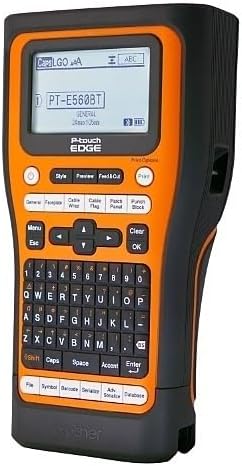

Brother PT-E560BTVP professional label printer with Bluetooth

General Overview

• Brother PT-E560BTSP professional handheld label printer designed for electrical, networking, and industrial environments

• Uses thermal transfer print technology for durable, long-lasting labels

• Supports HSE and TZe tapes, ideal for heat shrink tubing, cable marking, and general identification

Printing Performance

• Maximum print resolution of 180 × 180 DPI for clear and legible labels

• High-speed printing of up to 30 mm per second

• Maximum print height of 18 mm and maximum print width of 24 mm

• Supports vertical, mirror, and rotated printing

• Prints up to 7 lines per label

• Built-in auto cutter and half-cutter for clean, easy-to-peel labels

Labelling Features

• Includes 476 electrical and industrial symbols

• Supports 684 characters, 14 fonts, and 7 frames

• Built-in barcode printing including CODABAR, Code 39, Code 128, Data Matrix, EAN13, GS1-128, UPC-A, and UPC-E

• Label memory for up to 99 stored labels

• Multi-block printing support (up to 99 blocks)

• On-screen print preview reduces errors and material waste

Connectivity & Compatibility

• Wired and wireless connectivity options

• Bluetooth 5.0 for mobile device printing

• USB 3.2 Gen 1 port for PC connection

• Compatible with:

  • Windows 10 and Windows 11

  • macOS Big Sur, Monterey, and Ventura

  • Android 9 & 10

  • iOS 11, 12, 13, 15, and 16

• Allows printing directly from a PC, smartphone, or tablet

Design & Usability

• Ergonomic handheld design with QWERTY keyboard (70 keys)

• Built-in backlit LCD display for visibility in low-light environments

• Rugged professional finish in Black and Orange

• Multi-language support

Power & Battery

• Built-in rechargeable Lithium-Ion battery

• Battery-powered for portability on job sites

• Auto power-off function to conserve battery life

Physical Specifications

• Dimensions: 244 mm (D) × 132 mm (W) × 80 mm (H)

• Weight: 1.05 kg

• Compact yet robust for field and workshop use

Package Contents

• Brother PT-E560BTSP label printer

• Rechargeable battery (included)

• USB cable

• Wrist strap

• Quick start guide

• Warranty card

Ideal Use Cases

• Electrical panel and distribution board labelling

• Cable and wire identification

• Network and telecom installations

• Industrial maintenance and compliance labelling
